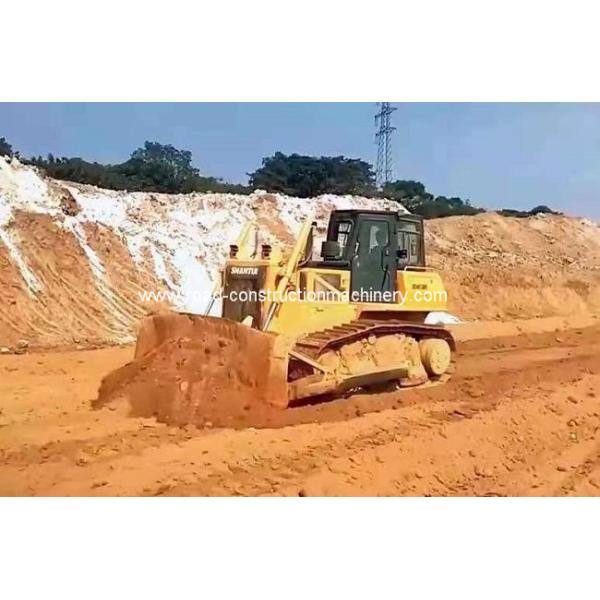

shantui DH17 170HP Bulldozer Low fuel consumption Warranty
Shantui DH17 full hydraulic bulldozer is a star product that came into being. It has inherited the quality of Shantui's craftsmanship for nearly 40 years. It has the largest power among the same equipment and stable and reliable performance. It has led the development direction of domestic full hydraulic bulldozers.Since its introduction to the market, the DH17 bulldozer has won the recognition and trust of global users with its high efficiency, energy saving, comfort and flexibility.
1. Low fuel consumption and high work efficiency
Hydrostatic drive, self-adaptive load, can steer with load, turn on the spot, efficient and fuel-efficient; Shantui's unique patented intelligent matching technology increases the overall efficiency by 16%.
2. The operation is labor-saving, flexible and precise
The electric control of the walking system and the hydraulic pilot control of the working device are flexible and light to achieve precise control with a small operating force; the palm command electronic control system, single-handle walking work operation, flexible and comfortable operation.
3. Driving environment, comfortable and secure
The ergonomics cab has an increased space of 10% and a wide field of vision; the overall sealed shock absorption system, adjustable angle seat, integrated single foot pedal, and vehicle safe passage system ensure the long-term operation of the driver Comfortable and safe.
4. Convenient maintenance, saving time and effort
Fault diagnosis and vehicle safety control system can realize automatic detection, diagnosis and alarm of vehicle faults; modular design, hydrostatic transmission structure is compact, small in size, light in weight and easy to maintain.
5. Widely adapt to working conditions
Whether it is the high-temperature sandstorm environment in the desert Gobi, or the wet and soft soil, or the earthwork in a narrow space, Shantui DH17 full hydraulic bulldozer can easily deal with it; the standard semi-U shovel has strong working capacity and can be equipped with three-tooth ripper, The traction frame can meet the needs of a variety of operations.
| Engine | Model & type | Weichai VP10G190E354(CHINA II) Weichai ViD1 0G190E214(CHINA I) |
| Gross pover | 140/1 88/1900 KW /HP/rpm |
| Net pover | 127/170/1900 KW /HP/rpm |
| Piston displacement | 9.726 L |
| Number of cylinders | 6 -126 X 130 mm (bore X strolæe) |
| Maximum torque | 900 N·m@1400-1 600 rpm |
| Walking
hydraulic
system | Type | Electronic control |
| Traveling pump (Rexroth) | 2 |
| Traveling motor (Rexroth) | 2 |
| Traveling system pressure | 42 Mpa |
| Travel speed | Forward | 0-10km/h |
| Reverse | 0-10km/h |
| Undercarriage
system | Carrier rollers | 2 each side |
| Track rollers | 7 each side |
| Width of track shoes | 510/610 mm |
| Pitch | 203 mm |
| Hydraulic
System | Type | 2 way bhydraulic pilot control +1 way electric bhydraulic hybrid control |
| Maximum pressure | 21 MPa |
| Working pump (Parker} | 1 |
| Main valve (Hydrocontrol) | 1 |
| Blade | Blade type | Straight tilt b lade/ Semi-U Blade |
| Dozing capacity | 4.5/4.7 m3 |
| Blade width | 33 88/3400 mm |
| Blade height | 1149/1200 mm |
| Maximum drop below ground | 520 mm |
| Maximum lfting height | 1010 mm |
| Riipper
(Optional) | Ripper type | Three shank ripper |
| Maximum dgging depth | 475 mm |
| Maximum lift above ground | 570 mm |
| Maximum tilt | 460 mm |
